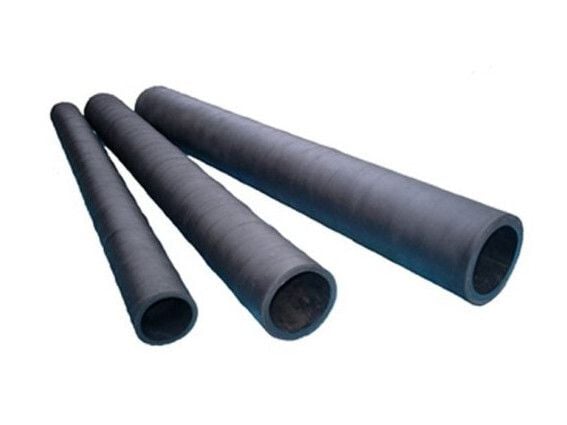

Straight Radiator Hose D200

Item Code: 2663

Mandrel built EPDM rubber hose designed for the transfer of water in motor vehicle cooling systems.

Product Code	Size	Diameter (mm) ID	Diameter (mm) OD	Working Pressure (PSI)	Burst Pressure (PSI)	Weight (kg/m)	Roll Length
SRH013	13mm	13	19.0	45	135	0.20	913mm
SRH016	16mm	16	23.0	45	135	0.24	913mm
SRH019	19mm	19	27.0	45	135	0.31	913mm
SRH022	22mm	22	30.0	45	135	0.32	913mm
SRH025	25mm	25	33.0	45	135	0.35	913mm
SRH029	29mm	29	39.0	45	135	0.40	913mm
SRH032	32mm	32	41.0	45	135	0.55	913mm
SRH035	35mm	35	44.0	45	135	0.60	913mm
SRH038	38mm	38	47.0	45	135	0.73	913mm
SRH041	41mm	41	51.0	45	135	0.77	913mm
SRH044	45mm	45	54.0	45	135	0.80	913mm
SRH048	48mm	48	57.0	45	135	0.97	913mm
SRH051	51mm	51	61.0	45	135	1.02	913mm
SRH054	54mm	54	64.0	45	135	1.10	913mm
SRH057	57mm	57	67.0	45	135	1.20	913mm
SRH060	60mm	60	70.0	45	135	1.23	913mm
SRH064	63mm	63	73.0	45	135	1.25	913mm
SRH067	67mm	67	77.0	45	135	1.38	913mm
SRH070	70mm	70	80.0	45	135	1.40	913mm
SRH073	73mm	73	83.0	45	135	1.45	913mm
SRH075	76mm	76	86.0	45	135	1.51	913mm
SRH080	80mm	80	90.0	45	135	1.98	913mm
SRH089	89mm	89	99.0	45	135	2.04	913mm
SRH102	102mm	102	112.0	45	135	2.15	913mm
SRH114	114mm	114	127.0	45	135	2.40	913mm
SRH127	127mm	127	140.0	45	135	2.48	913mm
SRH140	140mm	140	152.0	45	135	2.92	913mm
SRH152	152mm	152	167.0	45	135	3.36	913mm
