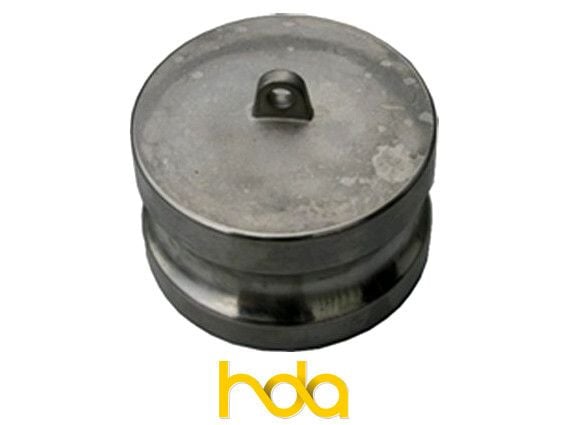

Stainless Steel Type-Dp Camlock. Male Adaptor Plug.
Thumbnail

Stainless Steel Type-Dp Camlock. Male Adaptor Plug.

Item Code: 3119
Camlocks also called cam and groove coupling, a hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different media and a variety of sizes to accommodate hose or piping diameter. Camlocks are capable of carrying liquids, powders and granules and are interchangeable with all other cam and groove couplings made to the same standard, ensuring compatibility with couplings made to the same specification.
Product CodeSizeWorking Pressure (PSI)Weight (kg/each)Pack Quantity
SS012DP1/2"2500.051
SS020DP3/4"2500.071
SS025DP1"2500.121
SS032DP1 1/4"2500.221
SS040DP1 1/2"2500.291
SS050DP2"2500.421
SS065DP2 1/2"1500.561
SS080DP3"1500.771
SS100DP4"1501.211
SS125DP5"752.051
SS150DP6"752.901
