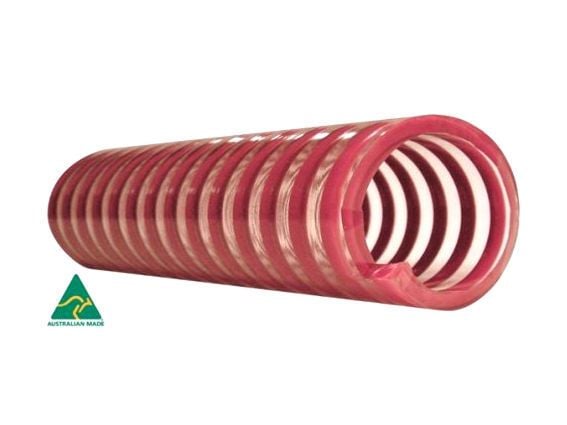

Redline €
Item Code: 2768
Designed for the conveyance of wines, beers and other liquid food products. Capable of handling up to 28% alcohol. Heavy wall design makes it ideally suited to the canning and food packaging industries. Excellent abrasion and chemical resistance with good flexibilty and moderate U.V. resistance. Conforms to AS2070.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Bend Radius (mm) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| SHSFB025 | 1" | 25 | 33.0 | 100 | 120 | 0.60 | 20 |
| SHSFB032 | 1 1/4" | 32 | 40.0 | 100 | 150 | 0.71 | 20 |
| SHSFB038 | 1 1/2" | 38 | 47.0 | 100 | 200 | 0.82 | 20 |
| SHSFB050 | 2" | 51 | 60.0 | 100 | 300 | 1.20 | 20 |
| SHSFB063 | 2 1/2" | 64 | 74.0 | 95 | 400 | 1.73 | 20 |
| SHSFB075 | 3" | 76 | 86.0 | 75 | 450 | 2.29 | 20 |
| SHSFB100 | 4" | 102 | 113.0 | 70 | 600 | 3.33 | 20 |
