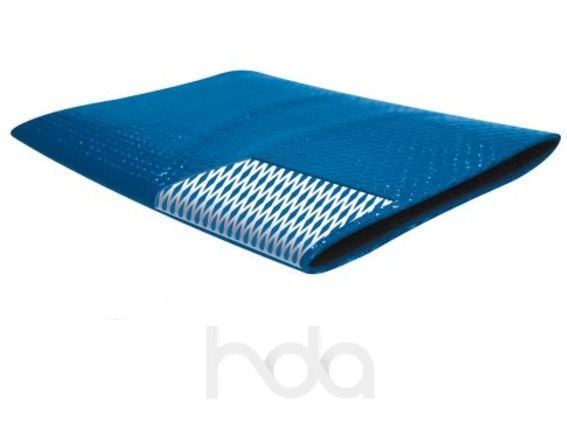

Layflat Low Pressure Blue
Item Code: 2882
Ideal for use as a drainage hose in emergency flood disaster situations, locations with relatively small differences in elevation, for temporary water supply or drainage.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| LFLD025 | 1" | 25 | 27.5 | 99 | 297 | 0.16 | 50-100 |
| LFLD032 | 1 1/4" | 32 | 34.5 | 99 | 297 | 0.20 | 50-100 |
| LFLD040 | 1 1/2" | 38 | 42.7 | 73 | 219 | 0.21 | 50-100 |
| LFLD050 | 2" | 51 | 54.8 | 65 | 195 | 0.29 | 50-100 |
| LFLD063 | 2 1/2" | 63 | 68.4 | 58 | 174 | 0.40 | 50-100 |
| LFLD075 | 3" | 76 | 80.6 | 58 | 174 | 0.57 | 50-100 |
| LFLD100 | 4" | 103 | 107.0 | 58 | 174 | 0.75 | 50-100 |
| LFLD125 | 5" | 127 | 131.0 | 44 | 132 | 1.01 | 50-100 |
| LFLD150 | 6" | 152 | 157.2 | 44 | 132 | 1.25 | 50-100 |
| LFLD200 | 8" | 204 | 211.8 | 44 | 132 | 1.93 | 50-100 |
| LFLD250 | 10" | 254 | 262.4 | 36 | 108 | 2.70 | 50-100 |
| LFLD300 | 12" | 305 | 314.0 | 30 | 90 | 2.90 | 50-100 |
| LFLD350 | 14" | 349 | 351.8 | 30 | 90 | 3.55 | 50 |
| LFLD400 | 16" | 405 | 412.9 | 30 | 90 | 4.20 | 50 |
