Rubber Petrol & Oil Suction/Delivery Hose
Thumbnail

Rubber Petrol & Oil Suction/Delivery Hose

Item Code: 2669

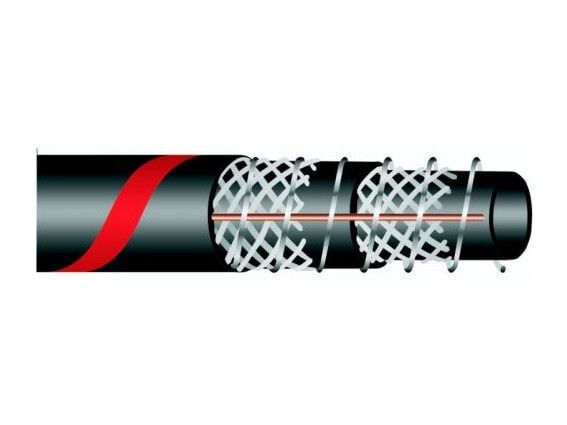

A good quality fuel, oil and petroleum suction and delivery hose incorporating a steel wire helix for reinforcement and conductivity. Suitable for most petrol, fuel and oil suction and transfer situations in industry. Also a good heavy duty marine exhaust hose. Conforms to SAE J1527.
Product CodeSizeDiameter (mm) IDDiameter (mm) ODWorking Pressure (PSI)Burst Pressure (PSI)Bend Radius (mm)Weight (kg/m)Roll Length
D404-0193/4"1928.01504501600.6120-60
D404-0227/8"2231.01504501900.7320-60
D404-0251"2535.01504502000.8520-60
D404-0321 1/4"3242.01504502561.0520-60
D404-0381 1/2"3848.01504503041.2220-60
D404-0441 3/4"4456.01504503621.6520-60
D404-0502"5163.01504504002.0820-60
D404-0572 1/4"5770.01504504562.3420-60
D404-0632 1/2"6377.01504505042.7820-60
D404-0753"7689.01504506082.5420-60
D404-0883 1/2"88105.01504507204.1520-60
D404-1004"102118.01504508165.0020-60
D404-1144 1/2"114130.015045013686.1720-30
D404-1255"127145.015045015007.4520-30
D404-1506"152170.0150450182411.3820-30
D404-2008"204224.0150450200017.6912
