Eolo Tr Flame Resistant Ducting
Thumbnail

Eolo Tr Flame Resistant Ducting

Item Code: 2785

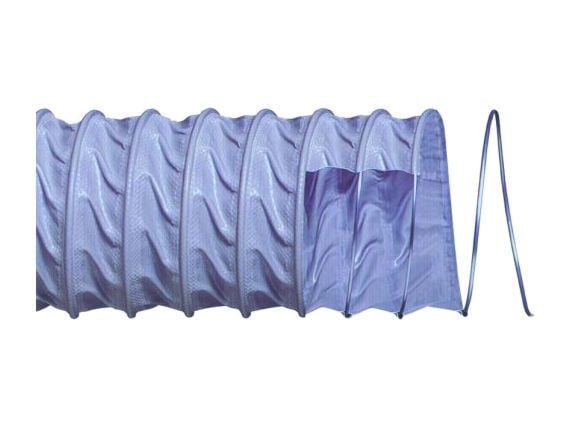

A flexible duct made in flame resistant PVC coated polyester fabric and reinforced by steel helix welded between the two layers. Axial compressibility: 8:1. Used in civil and naval conditioning plants, ventilation systems, suction of fumes, vapours, powders, gas. Flame retardant V(TM)-0 according to UL 94 and M2 grade according to NFP 92 503.
Product CodeSizeDiameter (mm) IDDiameter (mm) ODBend Radius (mm)Weight (kg/m)Roll Length
J13-0401 1/2"3846.0200.1010
J13-0502"5158.2260.1210
J13-0602.386367.2300.1410
J13-0753"7683.6380.1810
J13-0903 1/2"9099.0450.2210
J13-1004"102111.4510.2810
J13-1144 1/2"114124.2580.3410
J13-1255"127137.2640.3810
J13-1405 1/2"140150.4700.4010
J13-1506"152162.6760.4110
J13-1606 1/2"160170.6800.4510
J13-1807"180192.0900.5010
J13-2008"203216.61020.5710
J13-2309"228242.01140.6410
J13-25010"254268.01270.8010
J13-30012"305319.41530.9610
J13-35014"356370.41381.1110
J13-40016"406420.41651.2710
