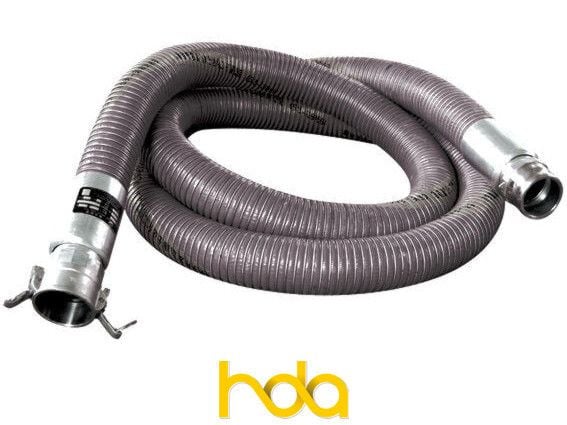

Code 901 Fuel King Heavy Duty
Thumbnail

Code 901 Fuel King Heavy Duty

Item Code: 2852
Used for ship to shore and general purpose heavy duty applications conveying petroleum products. Suitable for heavy duty discharge for road and rail tankers, docks, ship to shore. Conforms to AS2683-2000 Type 1 Grade 3. Galvanised internal and external wire.
Product CodeSizeDiameter (mm) IDDiameter (mm) ODWorking Pressure (PSI)Bend Radius (mm)Weight (kg/m)Roll Length
CH901-0251"2535.02031000.9020
CH901-0321 1/4"3242.02031251.3020
CH901-0381 1/2"3950.02031401.5020
CH901-0502"5165.02031701.9020
CH901-0632 1/2"6376.01452003.0020
CH901-0803"7690.01452703.4020
CH901-1004"102120.01453406.5020
CH901-1506"152180.014570012.40to-order
