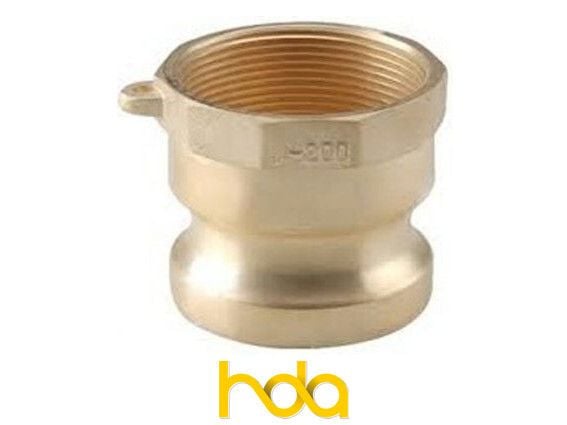

Brass Type-A Camlock. Male Adaptor X Female Bsp Thread.
Thumbnail

Brass Type-A Camlock. Male Adaptor X Female Bsp Thread.

Item Code: 3125
Camlocks also called cam and groove coupling, a hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different media and a variety of sizes to accommodate hose or piping diameter. Camlocks are capable of carrying liquids, powders and granules and are interchangeable with all other cam and groove couplings made to the same standard, ensuring compatibility with couplings made to the same specification.
Product CodeSizeWorking Pressure (PSI)Weight (kg/each)Pack Quantity
BR020A3/4"2500.091
BR025A1"2500.111
BR032A1 1/4"2500.201
BR040A1 1/2"2500.301
BR050A2"2500.361
BR065A2 1/2"1500.581
BR080A3"1500.701
BR100A4"1501.071
BR125A5"751.361
BR150A6"751.661
