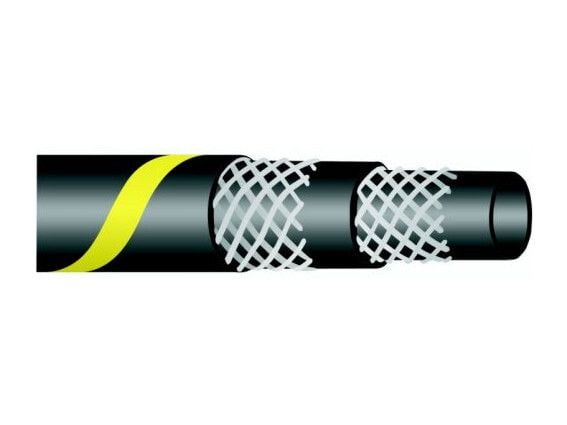

Sand Blast Hose
Item Code: 2699
Sand and shot blasting hose where moderate [10bar] pressures are encountered. Recommended for delivery of sand, cast steel shot and abrasive materials in general use in the sandblasting services.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Bend Radius (mm) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|---|
| D803-012 | 12 x 28 | 13 | 28.0 | 150 | 450 | 156 | 0.49 | 20 |
| D803-019 | 19 x 33 | 19 | 33.0 | 150 | 450 | 228 | 0.64 | 20 |
| D803-020 | 19 x 40 | 19 | 40.0 | 150 | 450 | 228 | 0.70 | 20 |
| D803-024 | 25 x 40 | 25 | 40.0 | 150 | 450 | 300 | 0.78 | 20 |
| D803-025 | 25 x 48 | 25 | 48.0 | 150 | 450 | 300 | 0.90 | 20 |
| D803-031 | 32 x 48 | 32 | 48.0 | 150 | 450 | 384 | 1.11 | 20 |
| D803-032 | 32 x 55 | 32 | 55.0 | 150 | 450 | 384 | 1.22 | 20 |
| D803-038 | 38 x 60 | 38 | 60.0 | 150 | 450 | 456 | 1.63 | 20 |
| D803-050 | 50 x 76 | 51 | 76.0 | 150 | 450 | 612 | 1.85 | 20 |
