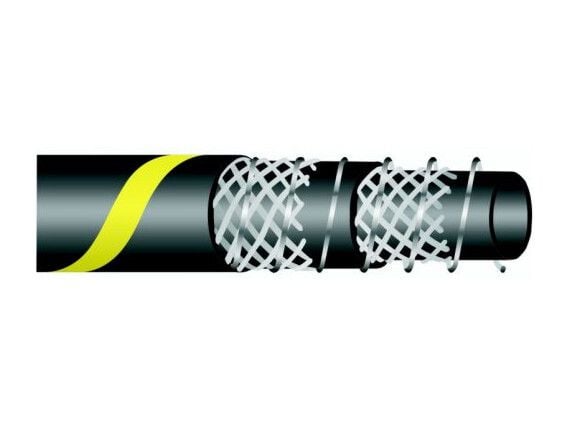

Muff Coupling Hose
Item Code: 2693
Heavy duty hose designed specifically for the transfer of slurry and wet abrasive materials in mining and industrial applications. Suitable for use with aluminium and cast iron muff couplings.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Bend Radius (mm) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|---|
| D801-050 | 2" | 51 | 71.0 | 100 | 300 | 612 | 2.92 | 20-60 |
| D801-063 | 2 1/2" | 64 | 81.0 | 100 | 300 | 756 | 3.30 | 20-60 |
| D801-075 | 3" | 76 | 103.0 | 100 | 300 | 915 | 5.44 | 20-60 |
| D801-100 | 4" | 102 | 128.0 | 100 | 300 | 1224 | 8.67 | 20-60 |
| D801-125 | 5" | 127 | 157.0 | 100 | 300 | 1524 | 11.91 | 20-30 |
| D801-150 | 6" | 152 | 182.0 | 100 | 300 | 1824 | 14.22 | 20-30 |
| D801-200 | 8" | 204 | 234.0 | 100 | 300 | 2436 | 19.22 | 12 |
| D801-250 | 10" | 254 | 287.0 | 75 | 225 | 3048 | 25.33 | 12 |
| D801-300 | 12" | 305 | 344.0 | 75 | 225 | 3648 | 36.78 | 12 |
