Rubber Steel Steam Hose
Thumbnail

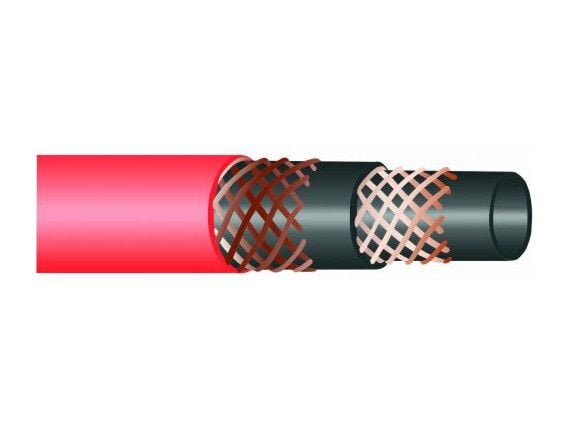

Rubber Steel Steam Hose

Item Code: 2687
Steel cord hose for saturated steam at a maximum working pressure of 261PSI, used in the chemical industry, petro-chemical and industrial applications in general. Not recommended for steam cleaner. Can be used for peaks of super-heated steam at 230 deg.C. The use of super-heated steam reduces hose life. For longer hose life, drain hose after use.
Product Code Size Diameter (mm) ID Diameter (mm) OD Working Pressure (PSI) Burst Pressure (PSI) Weight (kg/m) Roll Length
D508-012 1/2" 13 25.0 261 2610 0.53 20-60-120
D508-019 3/4" 19 31.0 261 2610 0.68 20-60-120
D508-025 1" 25 37.0 261 2610 0.90 20-60-120
D508-032 1 1/4" 32 46.5 261 2610 1.30 20-60-120
D508-038 1 1/2" 38 54.0 261 2610 1.60 20-60-120
D508-050 2" 51 65.0 261 2610 2.20 20-60-120
