Rubber Airwater Delivery
Thumbnail

Rubber Airwater Delivery

Item Code: 2612

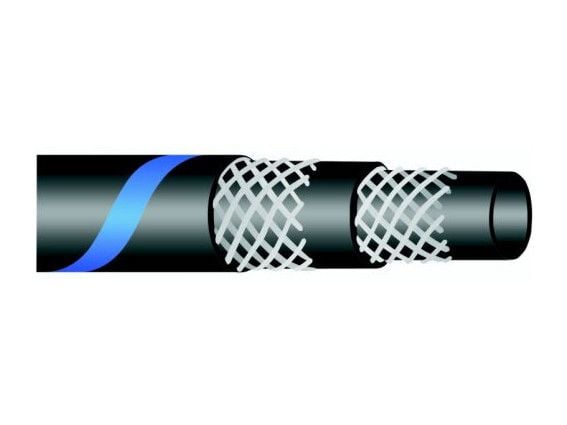

Heavy duty mandrel built rubber hose designed for the transfer of compressed air up to 20 bar [300psi] in industrial and mining applications.

Product Code Size Diameter (mm) ID Diameter (mm) OD Working Pressure (PSI) Burst Pressure (PSI) Weight (kg/m) Roll Length
D107-012 1/2" 12.5 23.0 300 900 0.48 20-60
D107-019 3/4" 19 29.0 300 900 0.61 20-60
D107-025 1" 25 36.0 300 900 0.90 20-60
D107-032 1 1/4" 32 44.0 300 900 1.14 20-60
D107-038 1 1/2" 38 50.0 300 900 1.41 20-60
D107-050 2" 51 65.0 300 900 2.04 20-60
D107-063 2 1/2" 64 79.0 300 900 3.08 20-60
D107-075 3" 76 93.0 300 900 3.60 20-60
D107-100 4" 102 121.0 300 900 5.72 20-60
