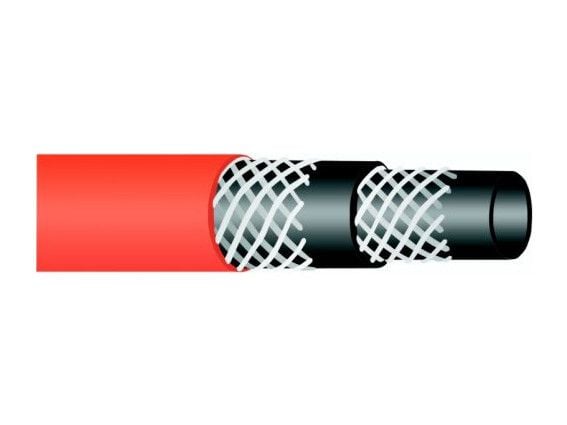

Red Multipurpose Hose
Item Code: 2623
General industrial application with frequent contact with oil or grease, this non-conductive extruded rubber hose is suitable for the transfer of water, air, oil and petroleum based products up to 30% aromatic content. The versatility of this hose makes it an excellent choice in a range of applications.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| D902-06 | 1/4" | 6 | 13.0 | 300 | 900 | 0.15 | 100 |
| D902-08 | 5/16" | 8 | 15.0 | 300 | 900 | 0.19 | 100 |
| D902-10 | 3/8" | 10 | 17.0 | 300 | 900 | 0.23 | 100 |
| D902-12 | 1/2" | 12.7 | 20.0 | 300 | 900 | 0.28 | 100 |
| D902-16 | 5/8" | 15.8 | 25.0 | 300 | 900 | 0.50 | 100 |
| D902-19 | 3/4" | 19 | 29.0 | 300 | 900 | 0.56 | 100 |
| D902-25 | 1" | 25.4 | 35.5 | 300 | 900 | 0.65 | 100 |
| D902-32 | 1 1/4" | 32 | 44.0 | 300 | 900 | 0.72 | 60 |
| D902-38 | 1 1/2" | 38 | 54.0 | 300 | 900 | 1.04 | 60 |
| D902-50 | 2" | 52 | 66.0 | 300 | 900 | 1.25 | 60 |
